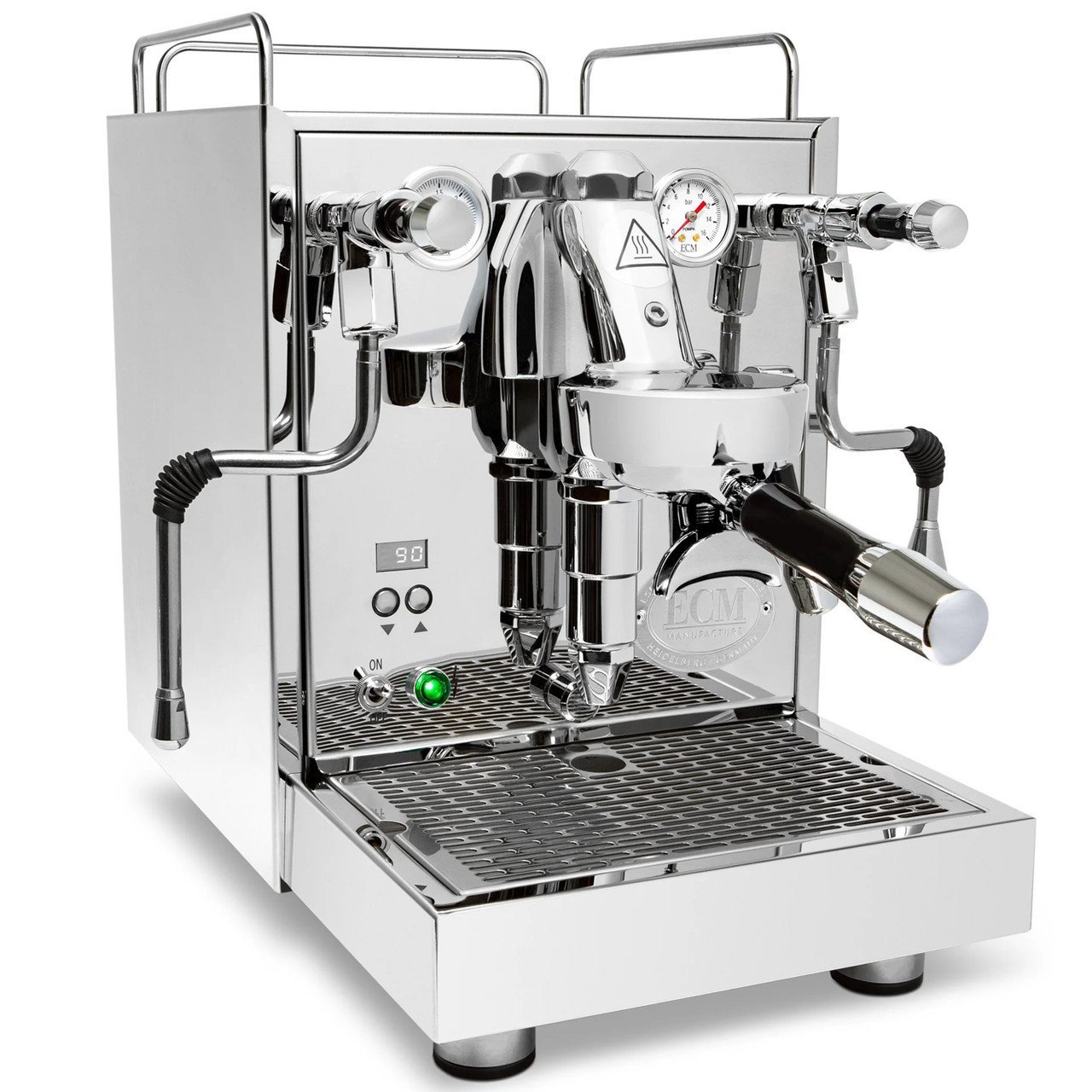

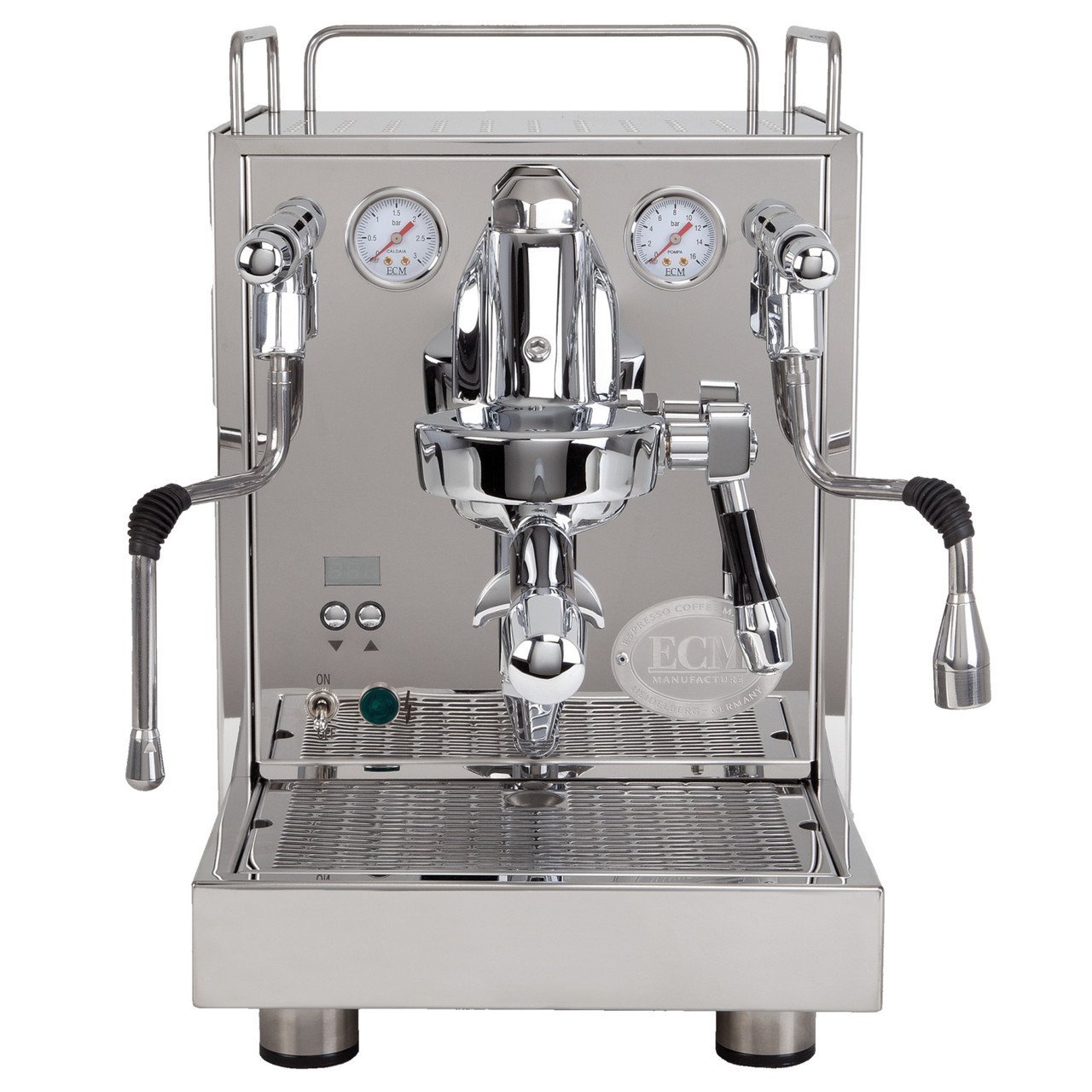

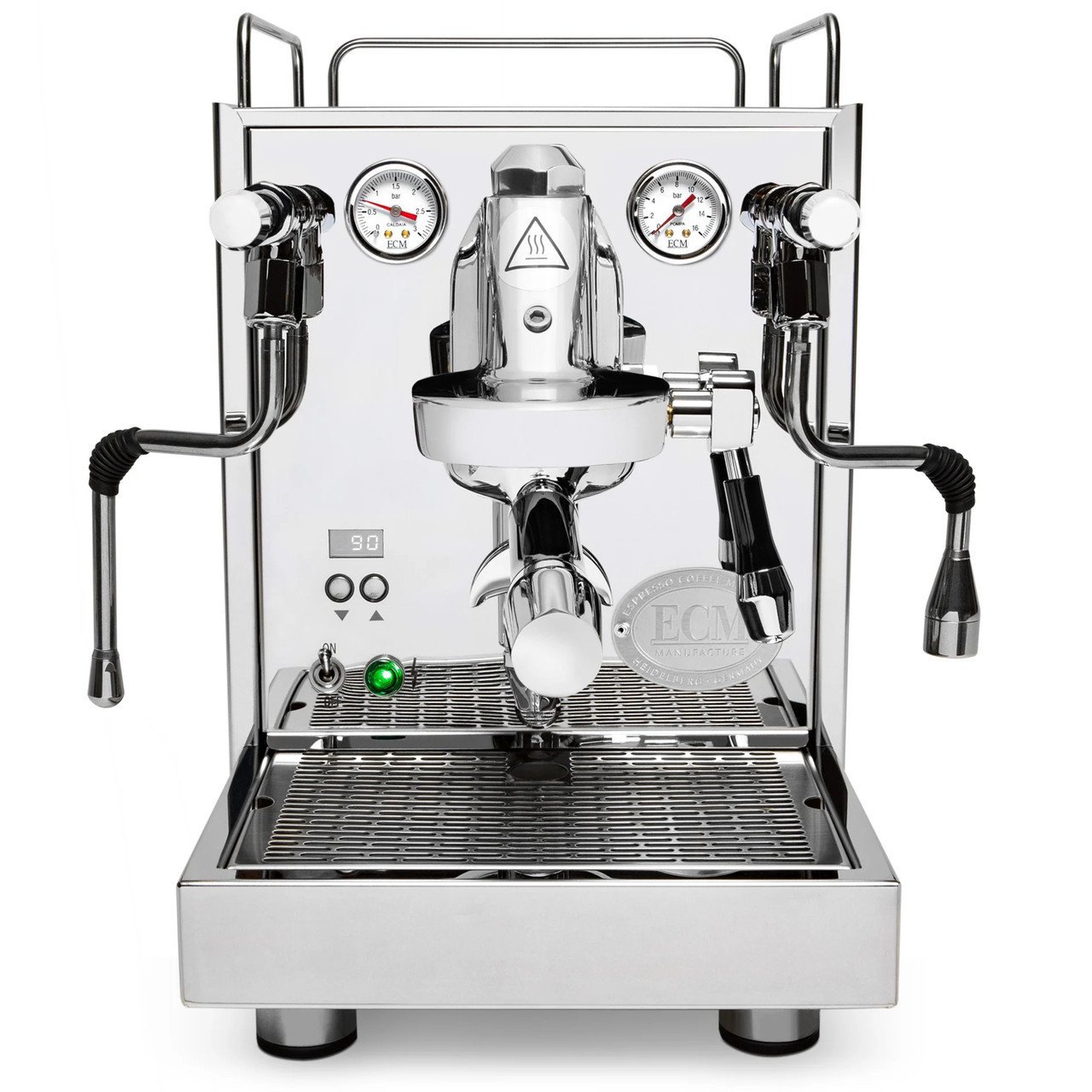

ECM Mechanika Max Espresso Machine with Flow Control Overview

If you’re looking for a heat exchanger espresso machine with flow control for home use, the ECM Mechanika Max is built for users who want both hands-on control and efficient daily workflow.

Unlike single-boiler machines, this model uses a heat exchanger system (HX), meaning you can brew espresso and steam milk at the same time. This is a major advantage if you regularly make milk drinks like lattes or cappuccinos.

At the same time, it adds manual flow control, giving you the ability to adjust extraction in real time—something typically found on higher-end prosumer machines. This combination of workflow + control is what defines this machine.

What Is the ECM Mechanika Max Espresso Machine?

The ECM Mechanika Max is a heat exchanger espresso machine manufactured in Germany. It uses a single 1.9L stainless steel boiler with a heat exchange tube that separates brew water from steam water, enabling simultaneous espresso brewing and milk steaming without the cost or complexity of a dual boiler system.

The E61 brew group maintains thermal stability through thermosiphon circulation. PID temperature control adjusts boiler temperature precisely. Flow control via a paddle on the brew group lets you manually adjust water flow rate during extraction. A built-in shot timer integrates into the PID display.

The lever activates the vibration pump and opens the brew valve — this is not manual pressure generation like the Profitec Pro 800. You control shot duration; the pump provides consistent 9 bar pressure.

At 10.8 inches wide and 51.8 pounds, it fits standard counters but requires sturdy support.  Pricing is $2,499, it sits in the middle of the ECM home espresso lineup, positioning between the ECM Classika PID ($1,500, single boiler) and the ECM Synchronika ($3,200+, dual boiler with rotary pump).

What’s Included

1. ECM single-spout portafilter
2. ECM double-spout portafilter
3. 7-gram single-shot filter basket
4. 14-gram double-shot filter basket
5. Flow control kit
6. Backflush disc
7. 58mm tamper with stainless base
8. Metal hose (1/8″, 3/8″) BSPP
9. Brew group cleaning brush
10. User manual

ECM Mechanika Max Features

Heat Exchanger System

The machine uses a heat exchanger espresso machine design.

• Brew and steam at the same time
• Ideal for milk drinks and multiple cups
• No waiting between functions

Trade-off:

• Brew temperature is indirectly controlled via boiler pressure (less precise than dual boiler PID machines)

Flow Control (Manual Profiling)

The flow control system is built into the group head.

How it works:

• A valve restricts water flow during extraction
• You manually adjust flow using the control knob

What it enables:

• Low flow → extended pre-infusion
• Full flow → standard extraction
• Reduced flow at end → pressure tapering

Important:

• Requires 2–3 weeks of practice to use effectively
• Not necessary for good espresso, but adds flexibility

E61 Brew Group

The E61 brew group provides stable extraction conditions once fully heated.

• Known for durability and consistency
• Requires proper warm-up time

PID Temperature Control (HX Management)

The PID temperature control regulates boiler temperature.

• Improves stability vs traditional HX machines
• Still indirect control compared to dual boilers

Boiler & Steam Performance

• 1.9L stainless steel boiler
• Strong, consistent steam pressure
• Suitable for back-to-back milk drinks

Dual Pressure Gauges

• Pump gauge: vibration pump output (~9–10 bar)
• Boiler gauge: steam pressure (indicates temp range)

These help monitor machine performance and extraction conditions.

Water Options (Tank + Plumb-In)

• 3L removable reservoir
• Optional direct water connection

Note:

• The included braided hose requires basic plumbing knowledge or professional installation

Pump Type (Important)

• Uses a vibration pump (~70–75 dB)
• Not as quiet as rotary pumps

If noise matters:

• Rotary pump machines (like higher-end models) are quieter but more expensive

Build & Weight

• Stainless steel construction
• Weight: ~51.8 lbs
• Heavier than entry-level machines

Make sure:

• Your counter can support the weight
• You have enough space for installation

Heat-Up & Workflow

• Initial heat-up: 10–15 minutes
• E61 stabilization: additional ~5 minutes recommended
• Workflow: continuous (no brew/steam switching)

Specifications

Daily Workflow

Heat-Up

Brewing

Flow Control Usage

• Low-flow pre-infusion: Start with paddle 50% closed for 3–5 seconds, then open fully
• Pressure tapering: Close paddle gradually during final 5 seconds of extraction

Steaming

Maintenance

• Backflush with water: daily
• Backflush with detergent: weekly
• Descale: every 3–4 months (water dependent)
• Group gasket: every 12–18 months
• Flow control paddle seal: inspect annually for leaks
• PID display shows cleaning reminders

Comparison with other Espresso Machine

ECM Mechanika Max vs Profitec Pro 500

• Mechanika Max:
  • Flow control included
  • More customization
  • Slightly steeper learning curve
• Pro 500:
  • No flow control (stock)
  • Simpler to operate
  • Similar HX performance

Takeaway:
Choose Mechanika Max if you want profiling control.
Choose Pro 500 for simpler, consistent workflow.

ECM Mechanika Max vs ECM Synchronika

• Mechanika Max:
  • Heat exchanger system
  • Simultaneous brew/steam
  • Flow control included
  • Lower cost
• ECM Synchronika:
  • Dual boiler system
  • More precise temperature control
  • Rotary pump (quieter)
  • Higher price

Takeaway:
Choose Mechanika Max if you want HX workflow + flow control.
Choose Synchronika if you need maximum precision and quieter operation.

• Want simultaneous brew/steam without dual boiler cost
• Value flow control for pressure profiling experimentation
• Make 3–5 milk drinks regularly
• Prefer lever-activated brewing over push-buttons
• Have counter space for 51.8 lbs and 17.5″ depth
• Accept vibration pump noise (70–75 dB)

• Primarily drink light roasts requiring exact brew temp — dual boiler recommended
• Need rotary pump quietness — Synchronika or Pro 700 required
• Want push-button simplicity — Classika PID or Casa V better fit
• Have budget under $1,500 — consider used market or Casa V
• Cannot commit to learning flow control — adds complexity without benefit if unused

FAQ

1. Is flow control necessary?
   No. You can make excellent espresso without it, but it adds flexibility if you want to experiment.
2. Can I make lattes and cappuccinos easily?
   Yes. The heat exchanger system allows simultaneous brewing and steaming.
3. Is it beginner-friendly?
   Not really. Expect a learning curve, especially with flow control and temperature management.
4. How loud is it?
   It uses a vibration pump (~70–75 dB), which is louder than rotary pump machines (Synchronika, Pro 700) run 55–60 dB if quiet is critical.
5. Do I need plumbing for this machine?
   No. You can use the reservoir, but plumb-in is optional if you want a permanent setup.
6. How often do I refill the water tank?
   The 3L reservoir lasts 4–5 days of regular use. In plumb-in mode, refilling is eliminated.

The ECM Mechanika Max is best described as a control-focused heat exchanger machine.

It gives you:

• The workflow of an HX system
• The flexibility of manual flow control

But it expects:

• Some learning
• Some experimentation

If that balance fits your needs, it’s one of the most versatile machines in its class.
